What is LaseView ?

“Beam profiler with M2 platform software “LaseView” is a highly functional and versatile laser beam profiler software that allows to use commercially available CCD cameras as beam profilers.
By using commercially available CCD and CMOS cameras, it is easy to build an extremely low-cost and practical beam measurement system.”

Features

Fig. UI of LaseView6

For detailed functions, please see the “LaseView Specification Details” tab and the “Analysis Function Details” tab.

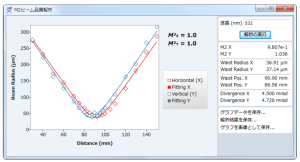

Fig. Screen of M2 beam quality measurement

“The M2 beam quality, an important parameter related to focusing characteristics, can be easily measured. The M2 beam quality is a very important parameter for laser processing. The procedure for setting up and analyzing the optical system for M2 beam quality measurement is available “here”.

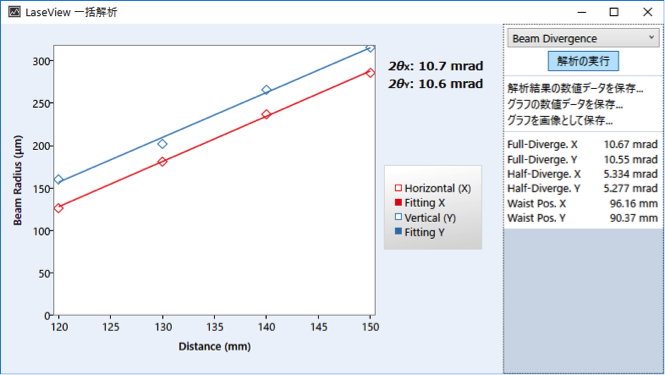

Fig. result of beam divergence analysis

“The beam divergence, an important parameter related to light propagation characteristics, can be easily measured. The beam divergence is a very important parameter for laser propagation.
The procedure of beam divergence analysis is available “here”

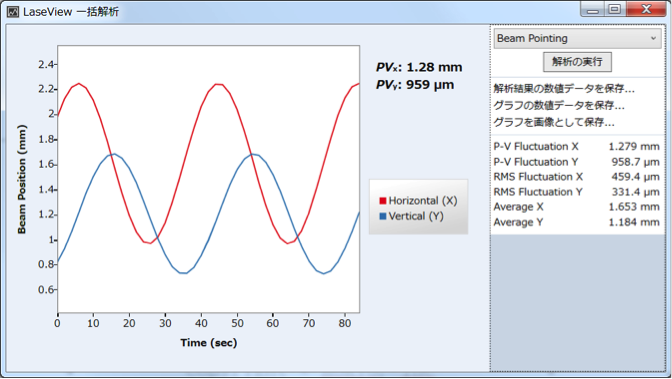

Fig. Analysis of beam pointing stability

“The temporal beam pointing change, a critical parameter for beam stability, can be easily measured.The procedure for analyzing temporal beam pointing change is available “here”.

Comparison with conventional product

By using commercially available CCD and CMOS cameras, an extremely low-cost and practical beam measurement system can be easily built. In addition, the availability of low-cost cameras makes it possible to construct a beam monitoring system with multiple cameras at low cost.

LaseView Conventional products
Customizability
Sales system Software only (camera is optional) Software license and camera
Use of third party cameras
(sold as camera set series)
2beam quality measurement Function ◎※
As a standard

(Option USD 5,000〜)
Price (software) USD 100 / month
Price(camera) from USD 1,310
needs software license
from USD 5,000
Price for 4 cameras (4 cameras) from USD 5,240
needs software license
from USD 20,000
Beam Profiler
+M2 beam quality measurement Function
from USD 1,310
needs software license
from USD 10,000
(USD 5,000+USD 5,000)
Minimum measurable Beam diameter from 2 μm
(When the micro-beam measurement set is installed)
from 30 μm
Maximum measurable beam diameter within 200 mm
(Sold as beam profiler for large apertures and high power
within 24 mm
Maximum measurable power within 600 W
(Sold as 600 W Beam Profiler for Fiber laser
Languages English captions are automatically shown if OS is not Japanese version Fixed (English ?)
*A focusing lens with an f-number of 50 to 100 is recommended. (e.g., focal length of 50 mm to 100 mm for a beam diameter of 1 mm)

Example of LaseView usage

Sample images

Fig. from left : near-field image of a He-Ne laser, far-field image of a Ti:Sapphire laser (focused by a parabolic reflector with f=3.3), and focused LD light output from a multimode fiber.

Laser beam position monitoring system for laser processing (1 software + 2 cameras)

Fig. Monitoring the position of the laser beam during laser processing.

In laser processing, the laser beam is transmitted as a collimated beam and then focused by a lens to irradiate the object. If the direction or position of the parallel beam incident on the lens changes, the position of the focusing point changes or the beam profile changes, resulting in inaccurate processing. To keep the beam direction (pointing vector) and the position of the beam center on the lens accurate, an optical system with two beam profilers is used. The position of the incoming parallel beam (e.g., the center of the beam) is measured at two locations, and precise optical axis adjustment is performed using two mirrors so that the beam is in position at both locations.

Laser beam monitoring system for laser processing (damage) testing (1 software + 4 cameras)

Fig. Measurement using multiple CCDs in a laser processing (damage) test.

“In laser processing (damage) test, it is necessary to measure the beam profile accurately at the sample position and to determine whether or not damage has occurred after irradiation. In addition, positional reproducibility during sample exchange is important because of the large number of samples to be measured. Therefore, an optical system with multiple CCDs (beam profilers) is used.(Note that LaseView can also be used for observation using a color CCD camera because it supports color image display.)”

Optical microscope system

“By simply attaching the optical tube to the CCD camera, the beam profiler can be used as a microscope. Chromatic aberration is corrected in the visible range (400 to 700nm). By using a color camera, full color display is possible, and by illuminating with LED lights, various objects such as fiber end facet can be observed.”
  • Magnification: 10x, 20x, 40x (specify magnification when ordering)
  • NA: 0.25 (10x), 0.40 (20x), 0.65 (40x)
  • Wavelength range: 400 to 700 nm
  • Working distance: 5.5 mm (10x), 1.7 mm (20x), 0.6 mm (40x)
  • Length: approx. 180 mm

Optical microscope system

Optical microscope system

Fiber end facet (20x)

Optical fiber measurement system

A laser beam with a wavelength of 975 nm emitted from the end facet of an optical fiber (FC/APC connector) was measured with a microbeam optical system. The mode field diameter is found to be about 6.4 μm. This is consistent with the specification of the optical fiber (6.6 ± 0.7 μm @ 980 nm). It can also be seen that the measured intensity distribution (white line) and the Gaussian fitting (red line) are almost identical, although the near-field pattern of the HE11 mode is slightly different due to its Bessel function. The slight difference in the aspect ratio of the beam is due to the fact that the connector is obliquely polished. It can also be seen that the beam diameter in the transverse direction is reduced by refraction at the end of the fiber. It can see that
  • there is no damage on the end facet of the optical fiber.
  • the mode field diameter of the optical fiber is known.
  • the intensity distribution is Gaussian.
  • the connector is diagonally polished.

Optical fiber measurement system

Example of beam profile emitted from fiber facet

Control and Evaluation System for Spatial Light Modulator (LCOS-SLM)


Control and Evaluation System for Spatial Light Modulator (LCOS-SLM) (Japanese)
The beam profiler software for evaluation was integrated into the CGH program software for LCOS-SLM control developed by us.

LaseView’s multi-point analysis function


LaseView's multi-point analysis function (Japanese)
It is possible to analyze multiple beam spots simultaneously with a single camera (See video). This function greatly enhances the quality of LiDAR.

Evaluation system of LiDAR using multiple LHB

This availability helps to analyze LiDAR’s spatial distribution.

Case1 Example of using analysis with multiple LHBs

Placed at 90 degrees each in the circumferential direction

Case2 Example of using analysis with multiple LHBs

Placed 4 for each quarter of the circumferential direction.

Case3 Example of using analysis with multiple LHBs

Stacked 4 vertically.

Case4 Example of using analysis with multiple LHBs

Arranged in the matrix state

Seminar movie

Webinar video of our participation in “Measurement Solution Web Seminar 2020 – For Measurement of Film, Coating and Light Source” hosted by Cybernet Systems, Inc. (Above site is only in Japanese.)

Introduction of the large aperture beam profiler (LaseView-LHB) for evaluation of laser scanners, LiDAR
Chapter 1 introduction of Laseview-LHB

Chapter 2 Use example of Laseview-LHB

Chapter 3 Line-up

LaseView Specification

*At least a camera is required to measure the beam profile. Please see the “recommended cameras“.

*If the beam intensity is too strong or the beam diameter is too small, please see the “Other options“.

*For large beam diameters, please see “Beam profiler for large aperture and high power“.

*If the image does not appear when the start button is pressed, set the camera settings in the [Pixel Format] of the [Camera Settings] tab before starting.

LaseView Specification details

Features

  • Ribbon UI User Interface
  • Image Logging Function
  • Analysis of temporal beam pointing change
  • Beam divergent angle analysis
  • Histogram Display
  • Measure spatial intensity distribution of the beam
  • Measurement of beam diameter
  • Measurement of M2
  • Measurement of small beam sizes below 30 μm
  • Real-time image averaging
  • Real-time contrast adjustment(wide dynamic range of 16 bit, 65536 shades)
  • Image buffer function (images can be stored in memory and displayed sequentially)
  • Image saving function in TIFF format
  • Smooth display with hardware acceleration
  • Support for 32 bit and 64 bit Windows

System Requirements

Windows 8.1, Windows 10, Windows 11
CPU speed: Intel Core i3 2GHz or equivalent or higher
Free memory: 512MB or more

*However, we do not guarantee the operation of all computers that meet this environment.
*NET Framework 4.5 or higher is required to run this software.

You can check the version of .NET Framework version from the following link:
http://msdn.microsoft.com/ja-jp/library/hh925568(v=vs.110).aspx

*Depending on the version, the actual screen may differ from the screen in this manual, but it can be used without problems.”

Analysis function

  • Line profile
    Crosshair line profile display with Gauss, Lorentz and Sech function fitting and FWHM analysis
  • Integration Profile
    Display of horizontally and vertically averaged profiles (with the same analysis functions as the line profile)
  • Maximum value projection profile (Max. Intensity Projection)
    Display of horizontally and vertically averaged (maximum) projection profile
    (with analysis function similar to line profile)
  • Point-to-Point Distance
    Measure the distance between any two points on the screen.
  • Peak Integration
    Analyzes the integrated value inside the circle and the light intensity on the cursor with the outside of the circle as background.

Example of analysis

Line profile function
Line profile function
Displays the line profile on the crosshairs (white line). The FWHM of the beam profile can be calculated and fitted with Gauss, Lorentz, and Sech functions. The crosshairs can also be rotated (the red line is the result fitted with the Sech2 function).

This video is a demonstration of the real-time tracking of peaks in LaseView’s line profile analysis mode, with the peak detection check box turned on.
Integral profile function
Integral profile function
Displays a profile averaged in the horizontal/vertical direction. The same analysis functions as the line profile can be used.
Maximum value projection profile function
Maximum value projection profile function
Displays only the profile of the horizontal/vertical orthographic projection (maximum value). The same analysis functions as for line profiles can be used. In the figure, the FWHM is measured.
Point-to-point distance function
Point-to-point distance function
It is possible to measure the distance between any two points on the screen. In the figure below, you can see that the diameter of the profile shown in green is 826.8 μm.
Peak Integration Function
Peak Integration Function
This function analyzes the integral value in the park with the outside of the circle as background. Adjust the position and size of the circle that appears on the screen so that the beam is well within the circle. When the ” Peak Detection” is clicked as shown in the figure below, the peak position will be indicated by the crosshair cursor.

Description of the notation

A description of the notation used in each function is shown in the table below.

Function Notation Description
Line profiles
Integral Profiles
Maximum value projection profile
FWHM X Horizontal full width at half maximum
FWHM Y Vertical full width at half maximum
FW@1/e X Full width at 1/e in horizontal direction
FW@1/e Y Full width at 1/e in vertical direction
FW@1/e2 X Full width at 1/(e×e) in horizontal direction
FW@1/e2 Y Full width at 1/(e×e) in vertical direction
Center X Horizontal center position
Center Y Vertical center position
Height X Horizontal peak height
Height Y Vertical peak height
Position X Horizontal cursor position
Position Y Vertical cursor position
Integration Profile Max X Maximum value of horizontal signal strength
Min X Minimum value of horizontal signal strength
Max Y Maximum value of vertical signal strength
Min Y Minimum value of vertical signal strength
Point-to-Point Distance Distance Distance between two points (m)
Distance Distance between two points (pixels)
Pos. X1 X-coordinate of the first point
Pos. Y1 Y-coordinate of the first point
Pos. X2 X-coordinate of the second point
Pos. Y2 Y-coordinate of the second point
Peak Integration Intensity /cm2 Intensity at the cursor position (in cm^-2)
Raw Value Digital count value of Intensity value
Background Background signal intensity
Integral Integral with background subtraction
Raw Integral Integral value without background subtraction
Position X Horizontal cursor position
Position Y Vertical cursor position

TAB Top

Analysis function details

M2 beam quality analysis function

CCD カメラ配置

The procedure for setting up the optical system is shown below.

  1. Focus the laser beam using a lens with an F value (focal length/beam diameter) of about 50 to 100.
  2. Set up a ruler or optical rail so that the CCD camera can slide along the beam within ±50mm to ±150mm from the center of the beam waist.
  3. Adjust the incident light level and gain/exposure time so that the laser beam is not too strong.
解析結果の例1

The procedure for M2 beam quality analysis is shown below.

  1. Click “Open Folder” in the “File” tab and create (or specify) an empty folder to save the images.
  2. Save about 10 to 30 beam profiles on the axis of the laser beam, centered on the beam waist and ranging from ±50mm to ±150mm in front and behind. The procedure is as follows.
    • Check the beam diameter at the beam waist.
    • Move the CCD camera to a position where the beam diameter is about 5 times larger than the beam diameter at the beam waist.
    • Fix the CCD camera and adjust the light intensity and CCD exposure time to obtain a good image with low noise.
    • Click on “Save Image” in the “File” tab, enter the current CCD position in the file name text box (Please use single-byte character in China, Korea etc.), and save the image. At this time, the unit can be added after the number, such as nm, um, mm, cm, m. If the unit is omitted, the image will be processed as mm.
      Example. 30mm.tif, 100mm.tif, 150mm.tif, etc.
    • The CCD camera is moved at intervals of 2 to 10 mm, and above step 3 to step 5 are repeated. In this case, the moving intervals do not have to be equal, and the accuracy may be improved by measuring the area around the beam waist at narrower intervals.
  3. Click the “M2 Beam Quality” button in the “Batch Analysis” tab, the M2 Beam Quality Analysis window will appear, and enter the laser wavelength in nm in the text box on the upper right.
  4. Click the “Run Analysis” button to run the analysis, and if successful, the results will be displayed in the graph.

*Analysis results are displayed as beam radius.

Beam divergence angle analysis

解析結果の例

The procedure for beam divergence analysis is shown below.

  1. Click “Open Folder” in the “File” tab and create (or specify) an empty folder to save the images.
  2. Take measurements at two or more locations and save the images in the same folder. Include the measurement location in the file name. For example, 1.5 m, 25 cm, etc.
  3. “Click the [Spread Angle] button in the [Analyze] tab. The Batch Analysis window for the beam divergence angle appears.
  4. Click the [Run Analysis] button to run the analysis, and if successful, the results will be displayed in a graph.

Analysis function of temporal beam pointing changes

解析

The following is the procedure for analyzing the temporal beam pointing change.

  1. Click “Open Folder” in the “File” tab and create (or specify) an empty folder to save the images.
  2. Use the image logging function to save the images at reasonable time intervals.
  3. Click the “Pointing” button.
  4. Click “Run Analysis” to display a graph of the timed changes in the X and Y coordinates of the beam center. The elapsed time is calculated based on the shooting date and time embedded in the file.

TAB Top

Sales results of LaseView

  • Osaka University
  • Kyushu University
  • Kyoto University
  • Kyoto Institute of Technology
  • Shinshu University
  • Nagoya University
  • University of Electro-Communications
  • The University of Tokyo
  • Tokyo Institute of Technology
  • Sophia University
  • The Graduate University for the Creation of New Photonics Industries
  • Hiroshima University
  • University of Fukui
  • Yamagata University
  • University of the Ryukyus
  • Utsunomiya University
  • Institute of Physical and Chemical Research
  • National Institute of Laser Technology
  • National Institute of Advanced Industrial Science and Technology (AIST)
  • Japan Atomic Energy Agency
  • National Institute of Information and Communications Technology
  • Japan Aerospace Exploration Agency
  • Quantum Science and Technology Research Organization
  • National Astronomical Observatory of Japan (NAOJ)
  • Japan Coast Guard Headquarters
  • Information equipment and industrial optical system development manufacturers
  • Optical product research and development manufacturer
  • Avision(Suzhou)CO.,LTD. Mechanical Engineering.Sect.2
  • Helmholtz-Zentrum Dresden-Rossendorf (HZDR, Germany)
  • Institute of Physics AS CR, v.v.i. (Czech Republic)
  • University of Southampton (United Kingdom)
  • Hong Kong Precision Industry Co.
  • Jet Propulsion Laboratory, NASA
  • Continuum Inc.
  • LG Electronics
  • Wontech
  • Other domestic and foreign private companies

Reviews

  • The camera is inexpensive, so don’t worry about breaking it.
  • Camera can be used as disposable.
  • Easy to prepare.
  • The software is intuitive and easy to use.
  • Inexpensive.
  • M2 beam quality measurement is included as a standard feature, which is very nice.
  • The evaluation results showed that the software works as expected, so we have just ordered the software. (used the evaluation version before purchasing)

Price

version Product name Price
(Excluding tax)
Delivery date User’s manual
Evaluation
(7 days)
LaseView Subscription 7-day Evaluation Free of charge Immediately
Try now
PDF
Commercial LaseView Subscription US $100 / month Immediately
Buy now
*This product (Beam Profiler with M2 Platform Software LaseView) is one license per machine.

Distributors

We have distribution channels of “Beam profiler LaseView series” as below.

Korea
Dylan Hong
CTL GLOBAL
327, 5, Beobwon-ro 4-gil, Songpa-gu, Seoul, Korea
Tel : +82 070 7779-4500
Fax : +82 42 367 4300
yshong@ctloptics.com
www.youtube.com/channel/UCsovG44FeikIp-zYfLZP3uw
ctl.imweb.me
Germany
Bernd Dietz
Geschäftsführer / Managing Director
nortus Optronic GmbH
In den Niederwiesen 4a
D-76744 Wörth am Rhein
Tel : +49-7271-12990-0
Fax : +49-7271-12990-19
info@nortus-optronic.com
www.nortus-optronic.de

If you want to be a distributor, please contact us.
info@symphotony.com

laseview_button
