Large-aperture beam profiler [200 mm / For visible light]
（Large beam profiler）
LBP-B200VIS-U / LBP-B200VIS-G
The LBP-B200VIS-U is a beam profiler capable of measuring, evaluating, and analyzing lasers with a maximum aperture of 200 mm × 200 mm and a maximum power density of 100 W/cm².
The LBP-B200VIS-U is an unparalleled optical product capable of measuring the world’s largest beams. It covers even large beam diameters within a single screen, making it a large-beam profiler that eliminates the need for segmented measurements for beam diameters up to 200 mm × 200 mm.
- Light receiving surface dimensions: 200 mm × 200 mm
- Optical resolution: approx. 400 μm
- Measurement wavelength range: 400 nm – 1100 nm
- Laser measurement up to high output is possible (0.1 W/cm2 to 100 W/cm2).
- With a function to reduce speckle (sparkling light and dark spots)
- Beam profiler analysis app(LaseView )included
Compared to other companies’ 200 mm products, it offers the following advantages:
- Interface GigE Type: LBP-B200VIS-G(Basic specifications are the same as LBP-B200VIS-U.)
- All-in-one and compact
- No user adjustment required
- Calibrated spatial scale
- Spatial distortion correction and sensitivity uniformity correction applied
- Low incidence angle dependence (particularly in the new -WA model, measurements are possible within a ±70° range)
- Thanks to the industry’s largest light-receiving surface, it can measure even large-aperture lasers such as drying lasers.
- It is also ideal for laser profiling in heating processes for components, not just laser drying.
LBP-B200VIS-U Specifications
Below are the specifications of this large beam profiler model.
| Light receiving surface size | 200 mm × 200 mm |
|---|---|
| Optical resolution（※1） | Around 400 μm |
| Measurement wavelength range | 400～1100 nm |
| Camera power supply | 5V、Around700 mA（Supplied from the included USB） |
| Motor power supply | 6V、100 mA or less（Supplied from the included AC adapter） |
| Size（mm） | W389 × H258 × D268(Excluding stand, cable and AC adapter) |
| Weight | 8 kg or less(Excluding stand, cable and AC adapter) |
| Software | Comply with LaseView |
| Remark |
|
| Price | contact us |
| Delivery time | contact us |
※１ According to product specification, resolution is available on whole area of light-receiving surface,Inspection prior to shipment will be made only on the center of light-receiving surface.
External Dimensions (LHB-200-VIS-U)
LBP-B200VIS-G Specifications
Interface: GigE type
(Basic specifications are the same as LBP-B200VIS-U above. Only differences are listed.)
| Flame rate | Max. 24 fps |
|---|---|
| Exposure time | 20 μs ~ 30 s |
| Interface | GigE（RJ-45 connector） |
| Camera power supply | 12 V, approx. 400 mA (Supplied from the included AC adapter) or 48 V (Supplied from a PoE-compatible device via LAN cable) |
| Motor power supply | 6 V, 100 mA or less (Supplied from the included AC adapter) |
| External dimensions (mm) | W389 × H258 × D268 (Excluding stand, cable, and AC adapter) |
| Weight | 8 kg or less(Excluding stand, cable and AC adapter) |
| Remark | LAN cable is not included. Cat6 or higher cable is recommended. |
| Price | contact us |
| Delivery time | contact us |
*Requires a Gigabit Ethernet (1000BASE-T) network; therefore, wireless LAN is not supported.

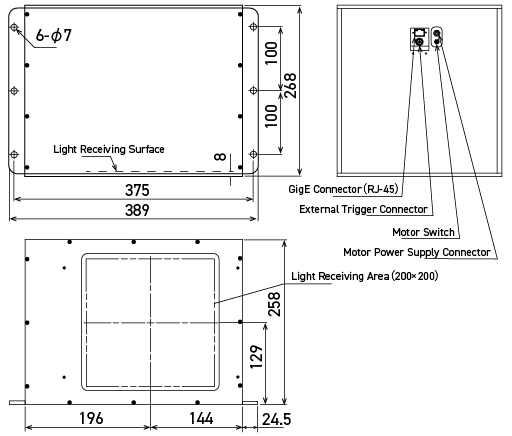

External Dimensions (LHB-200-VIS-G)
