Laser Beam Profiler for 4kW green laser
LBP-C03GR4000
LBP-C03GR4000 is a dedicated beam profiler for high-power green lasers with a wavelength of 515 nm.
It supports laser peak power up to 4 kW and pulse energy up to 40 J.Built-in beam splitter and ND filter achieve attenuation rates of 9 to 13 digits.It is designed for QCW (quasi-continuous wave) lasers.
Beam cross-section profile measurement and M2 measurement are possible manually.
The built-in focus adjustment mechanism provides a ±25 mm vertical range.The software employs “Laser Beam Profiler with M2 Platform Software LaseView”, which is highly evaluated for usability.
- Dedicated beam profiler for green lasers with a wavelength of 515 nm
- Supports laser peak power up to 4 kW
- Supports pulse energy up to 40 J
- Built-in beam splitter and ND filter achieve attenuation rates of 9 to 13 digits
- Designed for QCW lasers
- Beam cross-section profile measurement
- M2 measurement possible (manual)
- Built-in focus adjustment mechanism with ±25 mm vertical range
Application
- Laser processing machine beam evaluation
- Laser metal 3D printer beam evaluation
- Laser oscillator beam evaluation
Product Specifications
| item | specification |
| Wavelength range | 515 nm |
| Maximum peak power | 4 kW |
| Maximum pulse energy | 40 J (4 kW × 10 ms) |
| Average power | Maximum 5 W |
| Beam diameter | 30 μm – 3 mm |
| Beam divergence angle | Within ±3° |
| Beam splitter attenuation rate | OD > 4.6 (<0.0025%) (Combined attenuation rate of two plates, fixed) |
| ND filter attenuation rate | OD4.0 (fixed) OD1.0, 2.0, 3.0: 1 to 2 individual filters can be inserted |
| Effective pixels | 1360 × 1024 |
| Pixel size | 4.65 × 4.65 μm |
| Imaging area | 6.32 × 4.76 mm |
| Interface | USB2.0 |
| External trigger | 5 – 24 V, rising edge |
QCW is a laser that operates with long pulses of more than a millisecond by pulse-modulating a CW laser.

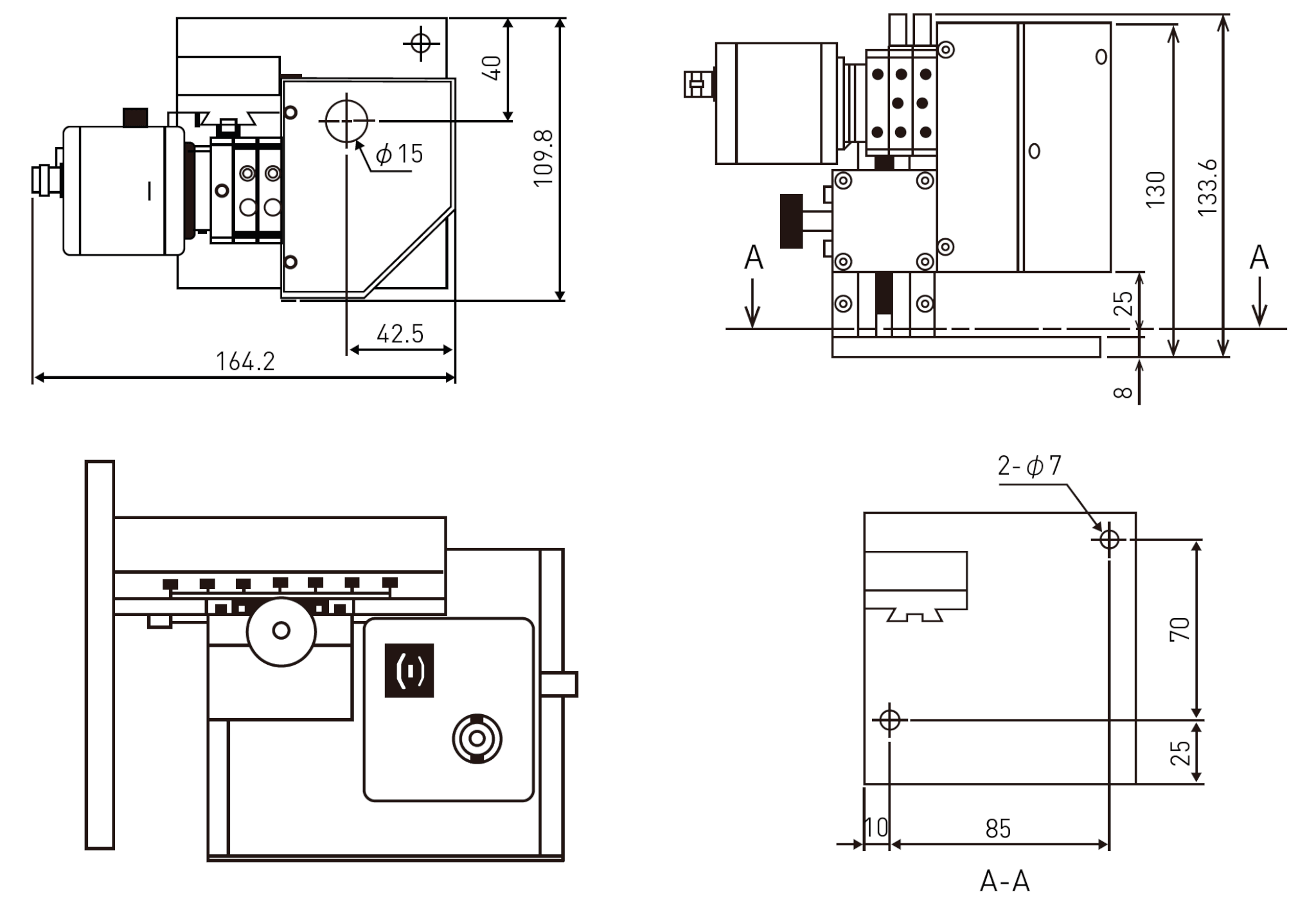

Appearance drawing
Price and delivery time
Model: LBP-C03GR4000
Price: Contact us
Lead time: Contact us
