Large-aperture beam profiler [100 mm / For visible light]
（Large beam profiler）
LBP-B100VIS-U(USB) / LBP-B100VIS-G(GigE)
The LBP-B100VIS-U is a large-beam profiler capable of measuring, evaluating, and analyzing lasers with a maximum aperture of
100 mm × 100 mm and a maximum power density of 100 W/cm².
The LBP-B100VIS-U is a unique optical product that can measure the largest beams in the world. It can cover large beam diameters on a single screen, eliminating the need for split measurements for beam diameters up to 100 mm × 100 mm.
*Model numbers vary depending on the interface.
- Light receiving surface dimensions: 100 mm × 100 mm
- Optical resolution: approx. 200 μm
- Measurement wavelength range: 400 nm to 1100 nm (532 nm or 1060 nm)
- Laser measurement up to high output is possible (0.1 W/cm2 to 100 W/cm2)
- With a function to reduce speckle (sparkling light and dark spots)
- Beam profiler analysis app(LaseView )included
- Interface GigE Type: LBP-B100VIS-G(Basic specifications are the same as LBP-B100VIS-U)
LBP-B100VIS-U Specifications
| Light receiving surface size | 100 mm × 100 mm |
|---|---|
| Optical resolution | Around 200 μm（※1） |
| Measurement wavelength range | 400 – 1100 nm（Focus is made with 532 nm or 1060 nm） |
| Camera power supply | Camera power supply 4.5 to 5.5 V About 250 mA (supplied from the USB) Motor power supply 6 V 100 mA or less (supplied from the included AC adapter) |
| Size(mm) | W208 × H137 × D173(Excluding stand, cable and AC adapter) |
| Weight | 2.5 kg or less(Excluding stand, cable and AC adapter) |
| Software | Comply with LaseView |
| Remark |
|
| Price | contact us |
| Delivery time | contact us |
※ 1 Typically, the resolution as specified is obtained over the entire light-receiving surface. However, the inspection before shipment is limited to the center.

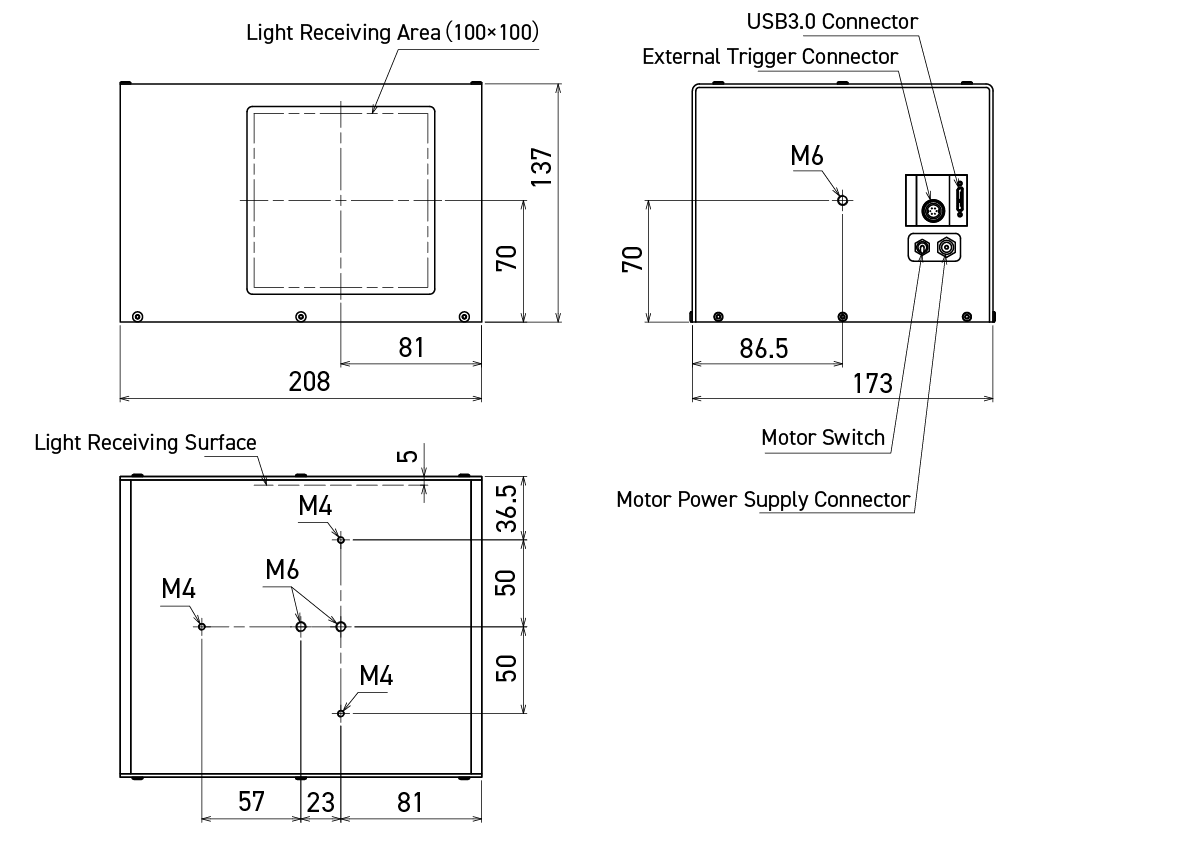

External Dimensions (LHB-100-VIS-U)
LBP-B100VIS-G Specifications
Interface: GigE type(Basic specifications are the same as LBP-B100VIS-U above. Only differences are listed.)
| Flame rate | Max. 36 fps |
|---|---|
| Exposure time | 20 μs ~ 30 s |
| Interface | GigE（RJ-45 connector） |
| Camera power supply | 12 V, approx. 400 mA (Supplied from the included AC adapter) or 48 V (Supplied from a PoE-compatible device via LAN cable) |
| Motor power supply | 6 V, 100 mA or less (Supplied from the included AC adapter) |
| External dimensions (mm) | W222 × H137 × D173 (Excluding stand, cable, and AC adapter) |
| Remark | LAN cable is not included. Cat6 or higher cable is recommended. |
| Price | contact us |
| Delivery time | contact us |
*Requires a Gigabit Ethernet (1000BASE-T) network; therefore, wireless LAN is not supported.

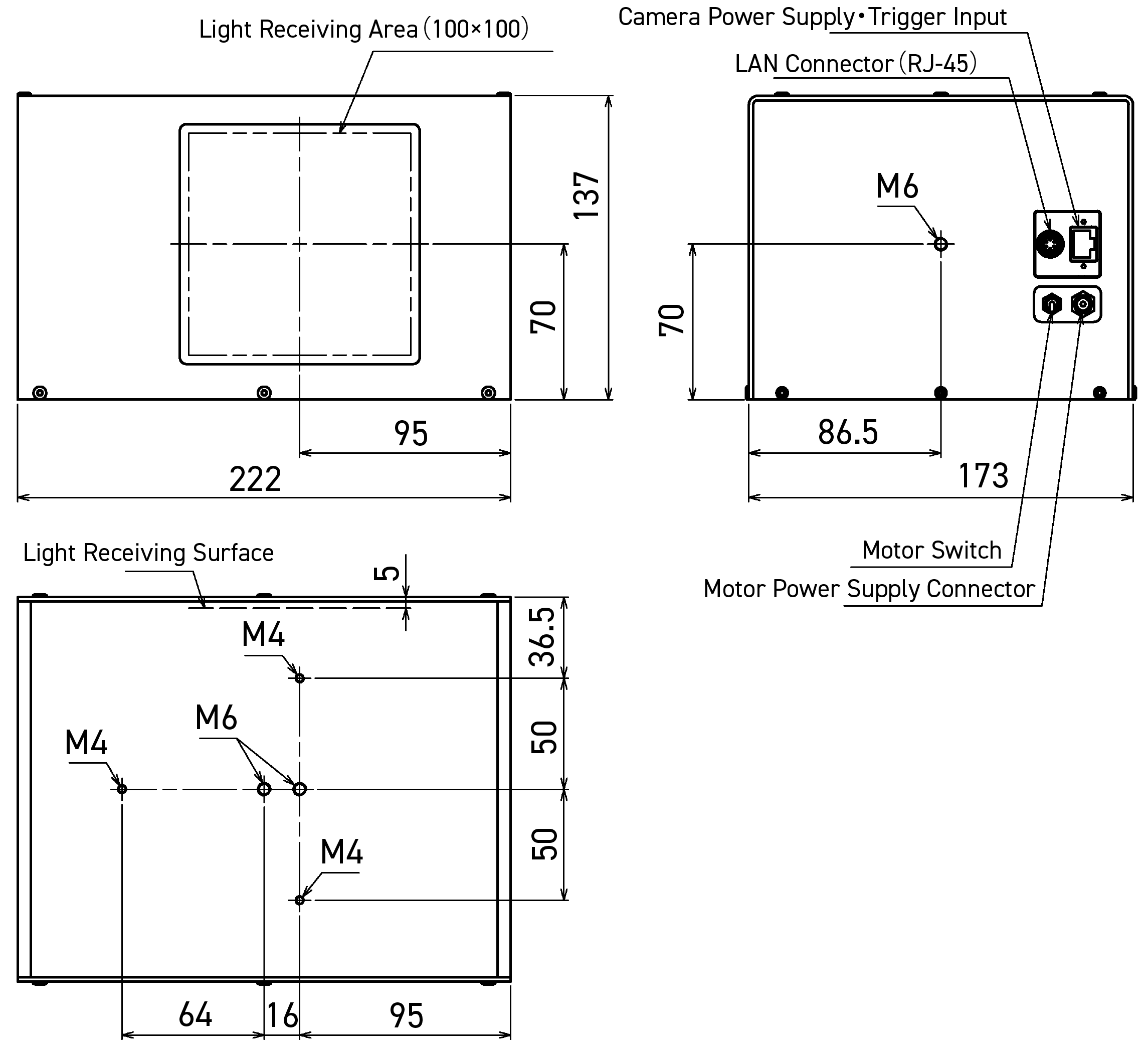

External Dimensions (LHB-B100-G)
” width=”58%” height=”auto” class=”aligncenter”/>
Example of experimental use
- This product, the “LBP-B100VIS-U” (formerly model number: LHB-100), has been used in animal experiments for intravascular phototherapy in the following paper for the purpose of therapeutic laser light profiling.
