Large-aperture beam profiler [50 mm / For visible light]
LBP-B50VIS-U(USB) / LBP-B50VIS-G(GigE)
This is the product page for the LBP-B50VIS-U, a large-aperture, high-power beam profiler. The LBP-B50VIS-U is a beam profiler capable of measuring, evaluating, and analyzing lasers with a maximum aperture of 50 mm × 50 mm and a maximum power density of 100 W/cm2. The LBP-B50VIS-U is an unparalleled optical product capable of measuring the largest beams in the world. It can cover large beam diameters on a single screen, eliminating the need for split measurements for beam diameters up to 50 mm × 50 mm.
*Model numbers vary depending on the interface.
Features
- Light receiving surface dimensions: 50 mm × 50 mm
- Optical resolution: approx. 100 μm
- Measurement wavelength range: 400 nm to 1100 nm (532 nm or 1060 nm)
- Laser measurement up to high output is possible (0.1 W/cm2 to 100 W/cm2)
- With a function to reduce speckle (sparkling light and dark spots)
- Beam profiler analysis app(LaseView )included
- Interface GigE Type: LBP-B50VIS-G(Basic specifications are the same as LBP-B50VIS-U)
specification
| Light receiving surface size | 50 mm × 50 mm |
|---|---|
| Optical resolution | Around 100 μm（※1） |
| Measurement wavelength range | 400 – 1100 nm（Focus is made with 532 nm or 1060 nm） |
| Power supply | Camera power supply 5 V About 250 mA (supplied from the USB) Motor power supply 6 V 100 mA or less (supplied from the included AC adapter) |
| Size(mm) | W154 × H82.5 × D130(Excluding stand, cable and AC adapter) |
| Weight | 2 kg or less(Excluding stand, cable and AC adapter) |
| Software | Comply with LaseView |
| Remark |
|
| Price | contact us |
| Lead time | contact us |
※ 1 Typically, the resolution as specified is obtained over the entire light-receiving surface. However, the inspection before shipment is limited to the center.

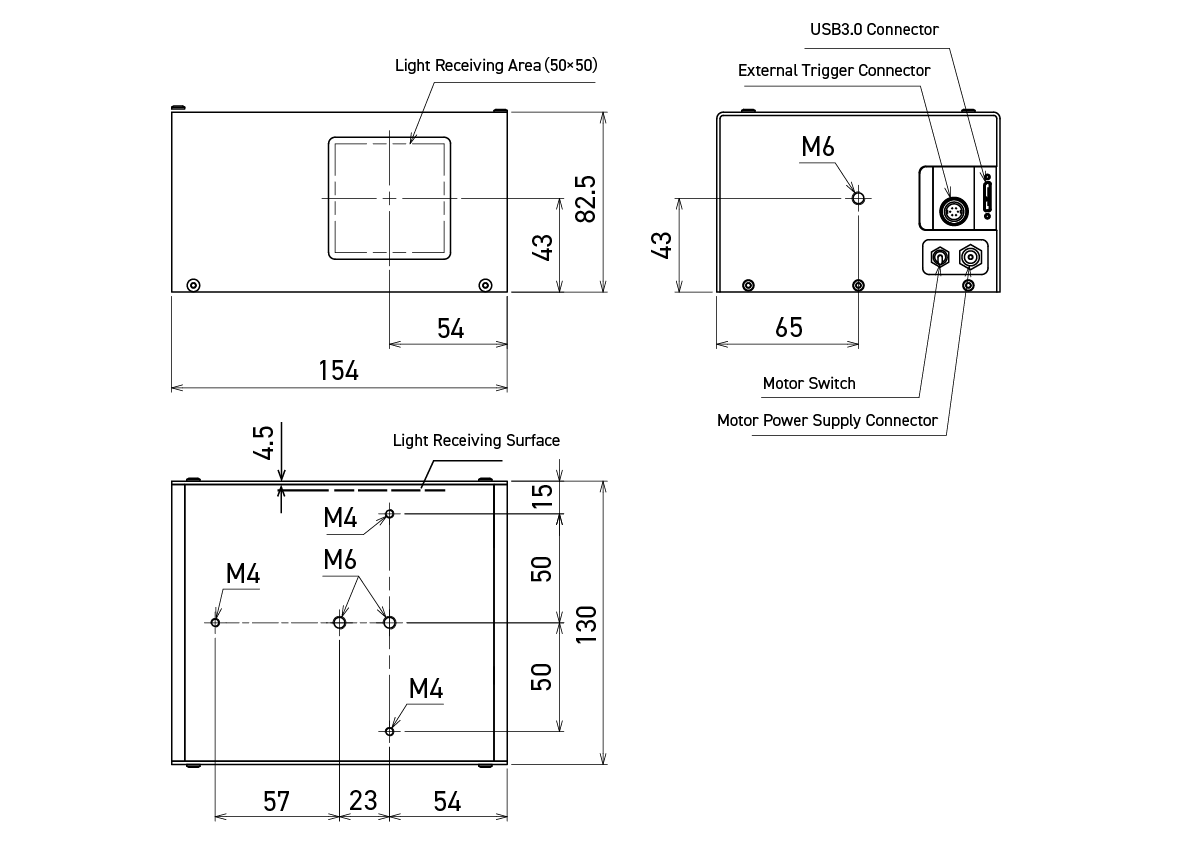

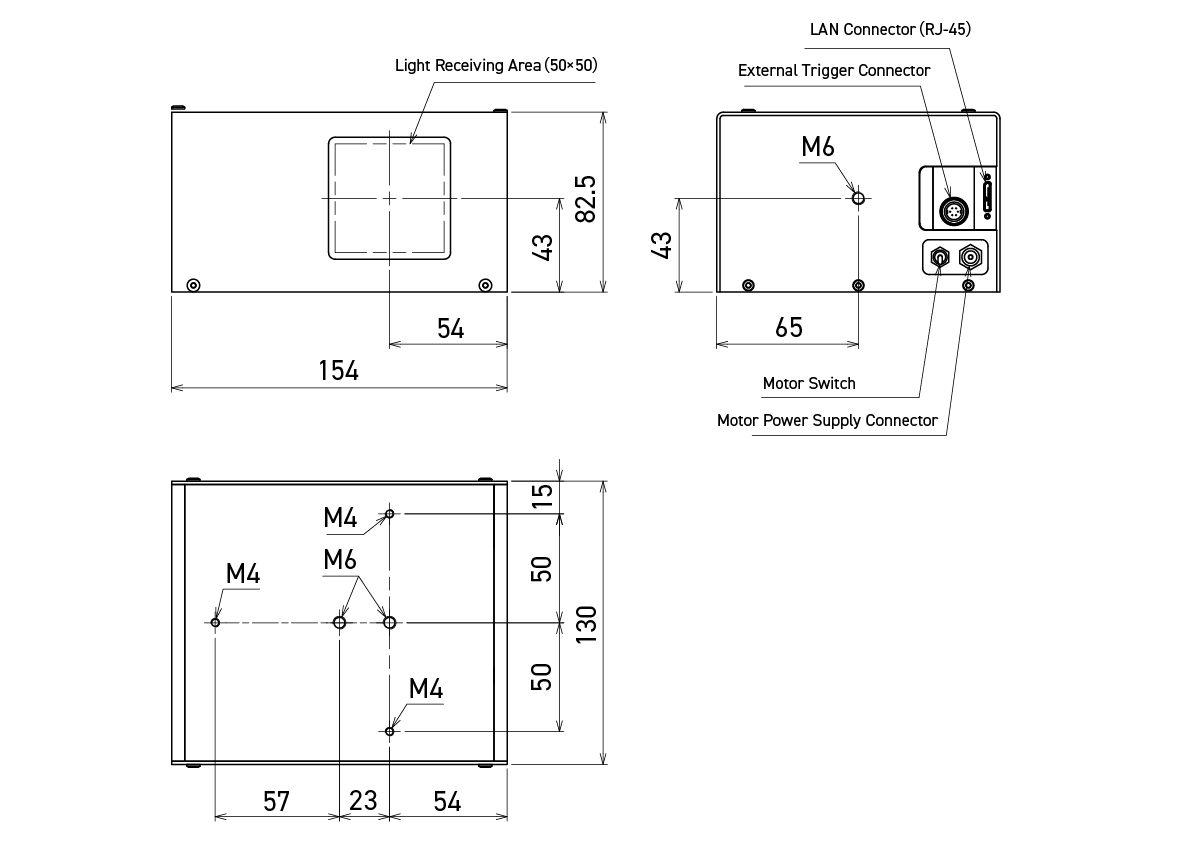

Diagram
LaseView-LHB External view
