Large-aperture beam profiler [25 mm / For visible light]（Large beam profiler）
LBP-B25VIS-U
The LBP-B25VIS-U is based on the fundamental performance of the LBP-B50VIS-U, a large-aperture, high-power beam profiler that is the standard model in the series. It was developed with various improvements to enable light source measurement in confined spaces. By reducing the length and width of the light-receiving surface to half the size of conventional models and improving sensitivity, it accurately captures light sources. This large beam profiler achieves higher optical resolution than the previous LBP-B50 model, enabling precise light source evaluation.
- Light receiving surface dimensions: 25 mm × 25 mm
- Optical resolution: approx. 50 μm
- Measurement wavelength range: 400 nm – 1100 nm(Focus adjusted at specified wavelength)
- Laser measurement up to high output is possible (0.1 W/cm2 to 100 W/cm2).
- With a function to reduce speckle (sparkling light and dark spots)
- Beam profiler analysis app(LaseView )included
specification
| Light receiving surface size | 25 mm × 25 mm |
| Optical resolution | Around 50 μm |
| Measurement wavelength range | 400～1100 nm（Focus is made depending on the designated wavelength） |
| Power supply | 5 V（Supplied from the included USB） |
| Motor supply | 6 V（Supplied from the included AC adapter） |
| Size（mm） | W129 × H57.5 × D116 |
| Remark | In case of small beam diamater, sufficient resolution may not be available. |
| Frame rate decrease depending on the PC’s Computing ability or USB terminal. | |
| In case of using speckle reduction function, 1 – 2 second (typical) measurement time is needed. | |
| Price | contact us |
| Lead time | contact us |
Diagram

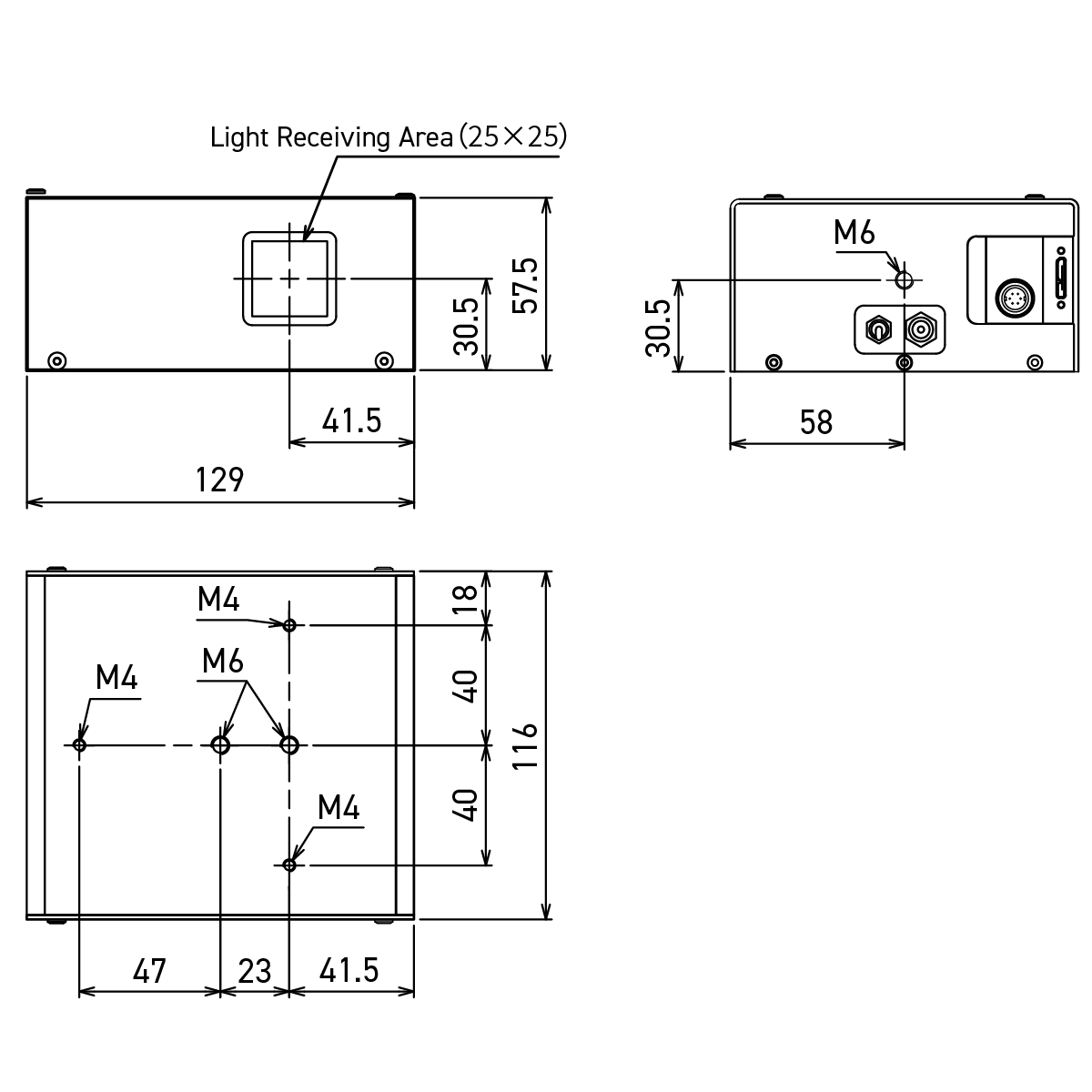

LBP-B25VIS-U External view
※１ According to product specification, resolution is available on whole area of light-receiving surface,Inspection prior to shipment will be made only on the center of light-receiving surface.
※ Wireless LAN is not supported because the network must support Gigabit Ethernet (1000BASE-T).
Catalog
Example of experimental use
- This product, the “LBP-B25VIS-U” (formerly model number: LHB-mini), has been used in experiments concerning cutting-edge optical communication and optical computing technologies for imaging and measuring diffraction beams, as detailed in the following paper.
- Furthermore, in the following paper, it is used in experiments concerning optical microwave systems to measure the focal distance of line-focused metamaterials.
