Large-aperture beam profiler [100 mm / For near infrared]
LBP-B100NIR-G
The LBP-B100NIR-G is a product for measuring and analyzing beams in the near-infrared region, based on the large-aperture beam profiler LBP-B100VIS-U, which is a standard product in the series.This large-beam profiler supports lasers with a measurement wavelength range of 950 nm to 1700 nm, a beam size of 100 mm × 100 mm, and a power density up to 100 W/cm².
Features
- Light receiving surface dimensions: 100 mm × 100 mm
- Optical resolution: approx. 800 μm
- Measurement wavelength range: 950 nm – 1700 nm
- Laser measurement up to high output is possible (0.1 W/cm2 to 100 W/cm2).
- With a function to reduce speckle (sparkling light and dark spots)
- Beam profiler analysis app(LaseView )included
specification
| Light receiving surface size | 100mm × 100mm |
|---|---|
| Optical resolution | Around 800 μm（※1） |
| Measurement wavelength range | 950 – 1700 nm（Focus is made with 1310 nm） |
| Power supply | 12V, 10W or less(Supplied from the included AC adapter) |

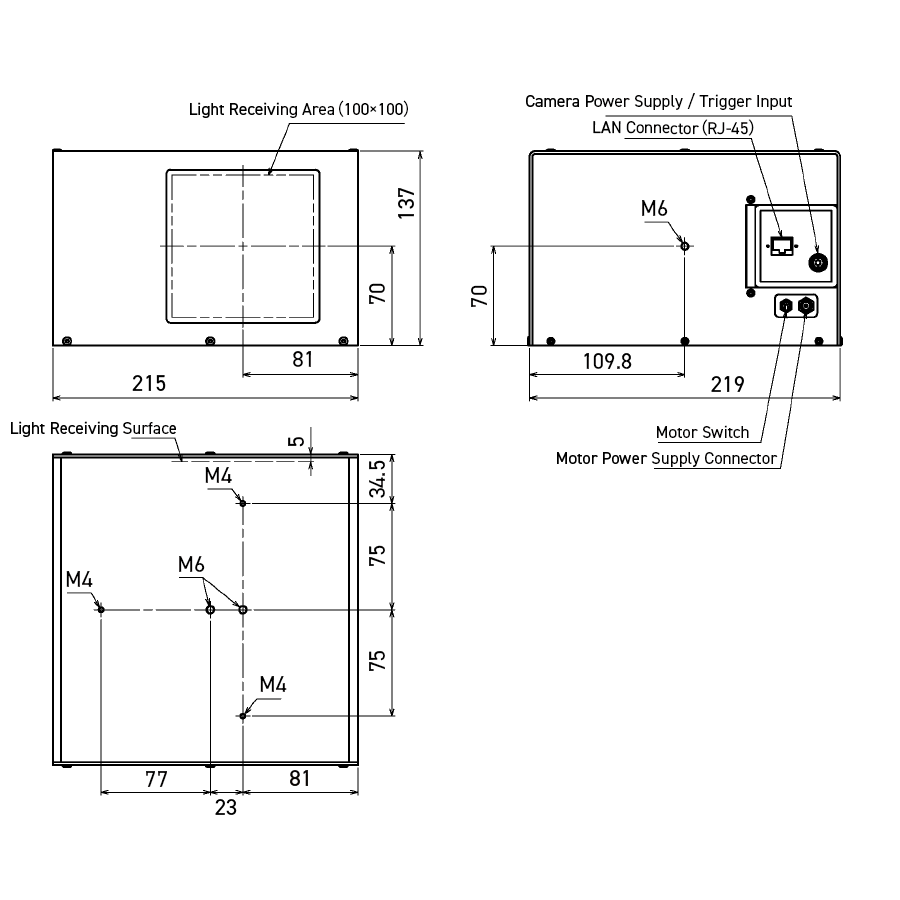

| Size(mm) | W215 × H137 × D219(Excluding stand, cable and AC adapter) |
| Weight | 2.5 kg or less(Excluding stand, cable and AC adapter) |
| Software | Comply with LaseView |
| Remark |
|
| Price | contact us |
| Lead time | contact us |
※ 1 Typically, the resolution as specified is obtained over the entire light-receiving surface. However, the inspection before shipment is limited to the center.
※ Wireless LAN is not supported because the network must support Gigabit Ethernet (1000BASE-T).
