Camera set [ Wavelength: 190 – 1100nm ]
LaseView-CA50-NCG
specification
| Measurement wavelength | 190 – 1100 nm | ||
|---|---|---|---|
| Beam diameter | 30 μm ~ 5 mm | ||
| CCD Camera | Pixel | 1360 x 1024 | |
| CCD size | 1/2 type | ||
| Pixel size | 4.65μm x 4.65μm | ||
| interface | USB 2.0 | ||
| Price(excludign Tax) ※1 | USD 1,441(Camera set only) （Trigger option：contact us) |
||
| Lead time | Contact us | ||
LaseView-CA-DUV-BE
Specifications
| Measurement wavelength | 190 – 400 nm | ||
|---|---|---|---|
| Beam diameter | 2 μm ~ 100 μm | ||
| Micro beam diameter measurement optical system | magnification | About 30 times | |
| NA | 0.5 | ||
| Working wavelength range | 240 – 360 nm | ||
| Optical resolution | < 1 μm | ||
| Working distance | About 1 mm | ||
| length | 194 mm | ||
| Price (excluding Tax) ※1 | contact us （Trigger option：contact us) |
||
| Lead time | Contact us | ||
LaseView-CA50-NCG-BE
Specifications
| Measurement wavelength | 400 – 1100 nm | ||
|---|---|---|---|
| Beam diameter | 2 μm ~ 100 μm | ||
| Micro beam diameter measurement optical system | magnification | Typical value 37.0 times @ 808nm | |
| NA | 0.4 | ||
| Optical resolution | < 2 μm | ||
| Working distance | About 1.5 mm | ||
| length | 121 mm | ||
| Working wavelength range | 400 – 1100 nm (600 – 1100 nm recommended) | ||
| Price(excluding tax) ※1 | USD 2,332(Camera set only) （Trigger option：contact us) |
||
| Lead time | Contact us | ||

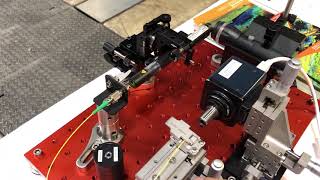

Reference video
Micro beam diameter measurement optical system set + Camera set
Wavelength: 190 – 400 nm
LaseView-CA-DUV-BE
Micro beam diameter measurement optical system set + Camera set
Wavelength: 400 – 1100 nm
LaseView-CA50-NCG-BE
