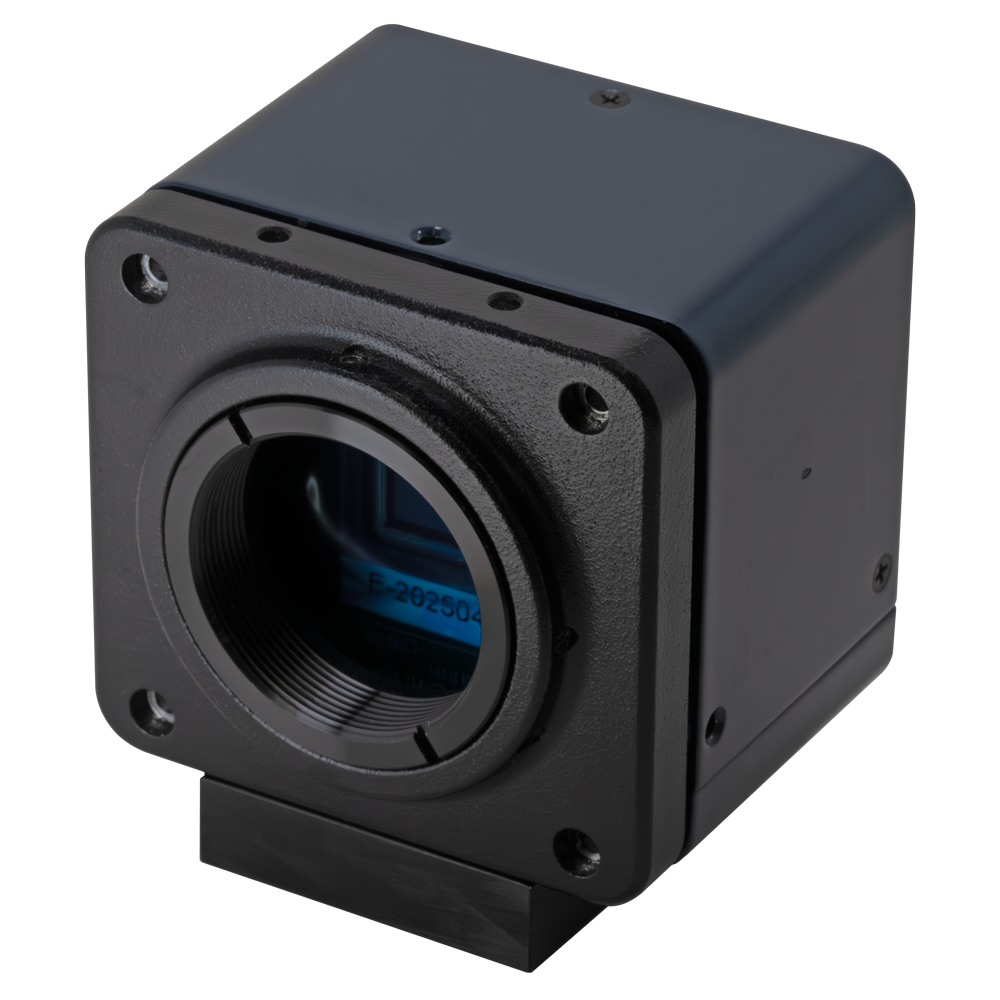

Small beam profiler camera set [Wavelength: 190 – 1100nm]
LBP-C05VIS / C08VIS / C08VIS
The LBP-C05VIS / C08VIS is a versatile camera-type beam profiler capable of measuring a wide range of wavelengths from 190 – 1100 nm.This M2 beam profiler is well-suited for M2 measurements due to its compact body.
Features
- Wavelength: 190 – 1100nm
- beam diameter : ( C05VIS ) 30 μm – 5 mm / ( C08VIS ) 17 μm – 8 mm
- Uses: Communications, research and development, processing machines, medical applications, and many others.
specification
| LBP-C05VIS | LBP-C08VIS | ||
| Measurement wavelength | 190 – 1100 nm | ||
| Beam diameter | 30 μm ~ 5 mm | 17 μm ~ 8 mm | |
| CCD Camera | Pixel | 1360 x 1024 | 4128 × 3008 |
| CCD size | 1/2 type | 1/1.1 type | |
| Pixel size | 4.65 μm x 4.65 μm | 2.74 μm × 2.74 μm/td> | |
| interface | USB 2.0 | USB 3.0 | |
| Price(excludign Tax) ※1 | contact us Trigger option：contact us) |
||
| Lead time | contact us | contact us | |
Micro beam diameter measurement optical system set + Camera set
Wavelength: 190 – 400 nm
LBP-C05DUV‐BE
Micro beam diameter measurement optical system set + Camera set
Wavelength: 400 – 1100 nm
LBP-C05VIS‐BE
