What is LaseView-LHB ?

LaseView-LHB is a laser beam profiler for large diameter and high power laser beams working on Windows systems.
Thanks to a newly-developed optical setup, it is the first product to provide measurements for both large
diameter and high power laser beams. This versatile lone product offers a wide range of applications.
It works with the LaseView software, which is known for its great usability.
Equipped with different analysis capabilities, it is a very easy-to-use beam profiler.

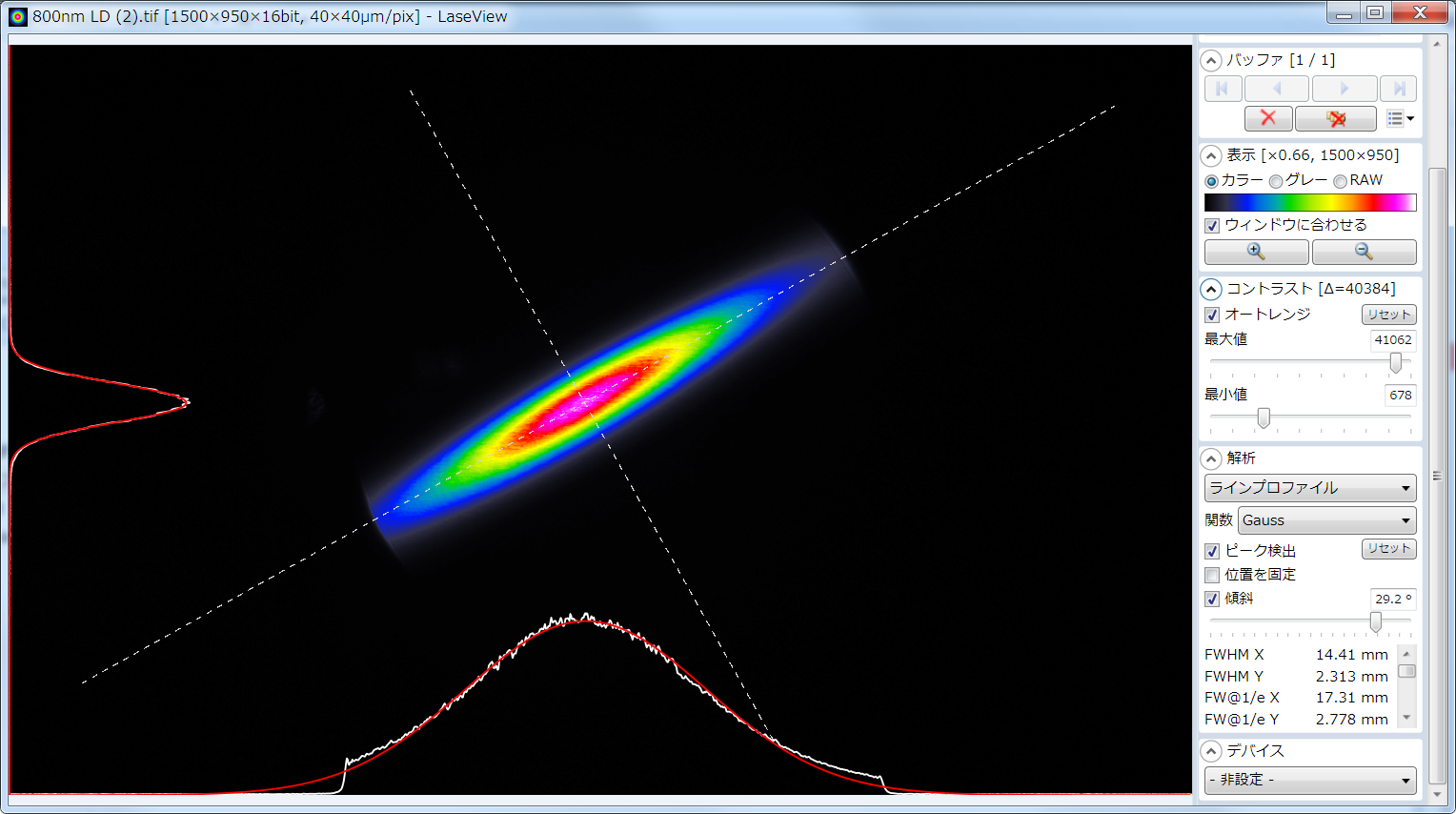

LaseView-LHB_single-mode-LD

Fig: 808nm single-mode semiconductor laser’s diverging light
(FWHM: 14.4mmx2.3mm)

Features

  • Measures easily the beam profile and diameter
  • Can measure from small to large diameters (2μm *~100mm **) (* with optional accessory / ** on custom products)
  • Can measure from low to high powers (1mW/cm2~100 W/cm2)
  • Includes cfi
    ckle reduction function (patterns of bright and dark spots)
  • Includes the “Beam profiler with M2 platform software” LaseView

LaseView software Features

  • Allows the use of low-cost cameras
  • Available the low-cost beam monitoring system
  • Measures M2 beam quality
  • Measures the beam Divergence Angle
  • Evaluation of the beam power, beam profile between 2 points, and beam diameter
    changes
    available
  • Measures the beam Pointing Stability over time
  • Image figure(Beam diameter:around 15mm)
測State of measurement
State of measurement
Measuring a beam with a diameter of about 15 mm and the software screen
State of measurement
State of measurement
Measuring multi-point beam and software screen

Comparison between LaseView-LHB and conventional products

For high power

高出力対応

Left : Beam profiling with dumped system.
Right: Beam profiling with at one time with LaseView-LHB.
Fig: (by ASUKA MEDICAL Inc)
Conventional Beam profiling measurement with high power laser needed damping system because CCD camera may be easily destroyed.
LaseView-LHB can measure as much as maximum 100 W/cm2 laser beam without additional attenuation system by using a newly designed optical system.
It simplifies optical system and prevents introducing distortion on laser beam.

For large diameter

大口径対応

Left : Beam profiling by divided measurement.
Right: Beam profiling at one time by LaseView-LHB.
Figure (by ASUKA MEDICAL Inc)
Until now, Beam profiling measurement with large diameter has required measuring by dividing it in several parts by making handy movement on the conventional profiler.It takes time and energy and also, divided measurement makes laser relative intensity unclear.LaseView-LHB solves such problems and it becomes possible to make large beam profiling at one time.

Scanning laser measurement

Because the aperture is wide, laser scanning light can be measured with a laser scanning unit without moving the beam profiler. Not only the beam profile but also the position of the laser beam can be accurately identified, making it ideal for performance evaluation.

Main Analysis Functions

2 beam quality Analysis function

It is an important parameter for focus or processing, it can be easily measured with standard methods. The procedure of the optical system setting is described below:
M2ビーム品質測定の画面
Fig: M2 measurement screen
  1. The laser beam shall be focalized through a lens with f-number (focal length/beam diameter)between ~50 to ~100.
  2. Install a ruler or an optical rail along the beam so that the CCD camera can slide in a range of ±50mm~±150mm around the beam waist.
  3. click on the “Collective analysis” of the “M2 beam quality” tab.

See the “About beam profiler” tab for more information.

Divergence angle Analysis function

Beam divergence angle is an important parameter for light propagation characteristics which can be easily measured with a standard method. Its measurement’s procedure is described below:
LHBによるビーム広がり角測定
Fig: Beam divergence angle measurement screen
  1. Measurements taken at 2 or more positions shall be saved in the same folder.
  2. Click the “Divergence angle” button of “Collective analysis” tab.

In addition, as the measurements are made at different places, it is possible to evaluate the change in power and thus the propagation loss.

Beam pointing variation Analysis function

The Beam pointing stability varies with time and is an important parameter for Laser Beam stability which can be easily measured with a standard method. Beam pointing measurement procedure is described below.
ビームポインティング経時変化測定の画面
Fig: Beam pointing stability screen
  1. Use the image logging function, and save images taken at an appropriate time interval.
  2. Click the “Pointing” button.
  3. Click the “Execute analysis”.

The changes over time of X and Y coordinates of the beam centroid will be displayed in a graph.

Multi-point analysis function in LaseView


Analysis of multiple beam spots with one LHB

Simultaneous analysis of multiple beam spots with one LHB. (See video)

Multi-point analysis function in LaseView

Fig: Analysis of multiple beam spots by one camera

1. Simultaneously analyze multiple beam spots with one camera. (See video)

Case 1: Analysis usage example with multiple “LHB”

multiple

Fig: 90 degrees in the circumferential direction



Specification

With LaseView-LHB, the measured large diameter beam illuminates an entrance window, the light diffused from the window is recorded by a CCD camera at the rear, which allows to measure large diameters. After several experiments, by using a particular window, the direct input of high-intensity beams of more than 100 W/cm2 was made possible and we succeeded in achieving both a high resolution and a uniform sensitivity.
model LaseView-LHB LaseView-LHB-GigE LaseView-LHB-mini LaseView-LHB-100 LaseView-LHB-NIR LaseView-LHB-100-NIR
Light receiving surface size 50 mm × 50 mm 100 mm × 100 mm 50mm × 50mm 100mm × 100mm
Optical resolution Around 100 μm
(at the center of
Light receiving surface)
(※1)
Around 200 μm
(※1)
Around 400 μm Around 800 μm
Indication of measurement power density 0.1 – 100 W / cm2
(Sensitivity is adjustable depending on the exposure time)
(1 mW/cm2〜 is possible by ND filter exchange)
0.1 – 100W / cm2
(Sensitivity is adjustable depending on the exposure time)
Total incident power Maximum 10 W Maximum 1 W Maximum 10 W
Allowed incident light angle ±15°
Measurement wavelength range 400 – 1100 nm
(Focus is made with 532 nm or 1060 nm)
950 – 1700 nm
(Focus is made with 1310 nm)
Image sensor pixel 1280 × 960
(Horizontal × vertical)
1600 × 1200
(Horizontal × vertical)
320 × 256
(Horizontal × vertical)
Acquisition image pixel 1250 × 1250
(Horizontal × vertical)
1600 × 1600
(Horizontal × vertical)
400 × 400
(Horizontal × vertical)
A/D Conversion resolution 8 bit / 12 bit 14 bit
Frame rate 30 fps
(at maximum)
20 fps
(at maximum)
62 fps
(at maximum)
Exposure time 0.1 ms – 250 ms 10 μs – 30 s 0.1 ms – 250 ms 0.1 ms – 30 s 0.001 ms – 16 ms
Interface USB 3.0
(miniB terminal)
GigE
(rj-45 connector)
USB 3.0
(miniB terminal)
USB 3.0 Gigabit Ethernet
(1000BASE-T)
External trigger Yes(3.3 – 24 V / 3.5 mA) Yes(3.3~12 V / 820 Ω)
Power supply
  • Camera power supply 5 V
    About 250 mA (supplied from the USB)
  • Motor power supply 6 V
    100 mA or less (supplied from the included AC adapter)
  • Camera power supply 12 V
    About 400 mA (supplied from the included AC adapter) or
    48V (supplied from PoE compatible devices via LAN cable)
  • Motor power supply 6 V,
    100 mA or less (supplied from the included AC adapter)
  • Camera power supply 5 V,
    About 250 mA (supplied from the USB)
  • Motor power supply 6 V,
    100 mA or less (supplied from the included AC adapter)
  • Camera power supply 4.5 to 5.5 V
    About 250 mA (supplied from the USB)
  • Motor power supply 6 V
    100 mA or less (supplied from the included AC adapter)
  • 12V, 7W
    (Supplied from the included AC adapter)
  • Motor power supply 6V, 100 mA or less
    (Supplied from the included AC adapter)
Size (mm) W154 × H82.5 × D130
(excluding stand and cable)
W168 × H82.5 × D130
(excluding stand and cable)
W186 × H84 × D68
(excluding stand and cable)
W208 × H137 × D173
(excluding stand and protrusion)
W195 × H83 × D196 W215 × H137 × D219
Weight 2 kg or less
(excluding stand, cable and AC adapter)
2.5 kg or less
(excluding stand, cable and AC adapter)
Software Comply with LaseView
Remark -1
  • (A) In case of using small beam diameter, sufficient resolution is not available.
    Please make beam diameter 10 mm and over on your use.
  • (B) Frame rate decrease depending on the PC’s Computing ability or USB terminal.
  • (C) In case of using speckle reduction function, 10 – 20 image averaging process is required and 1 – 2 second (typical) measurement time is needed.
  • Use a LAN cable that supports CAT5E or CAT6. (LAN cable is not included.)
  • (A) In case of using small beam diameter, sufficient resolution is not available.
    Please make beam diameter 5 mm and over on your use.
  • (B) Frame rate decrease depending on the PC’s Computing ability or USB terminal.
  • (C) In case of using speckle reduction function, a measurement time (typical value) of 1 to 2 seconds is required.
Remark -2 LAN cable is not included.
Cable with 6 and over is recommended.
* 1 Typically, the resolution as specified is obtained over the entire light-receiving surface. However, the inspection before shipment is limited to the center.
* Maximum beam diameter can reach 100 mm × 100 mm on customized devices.
Infrared wavelength region can also be measurable on customized devices.
We can also provide reduced-size custom devices. Please contact us.

Appearance

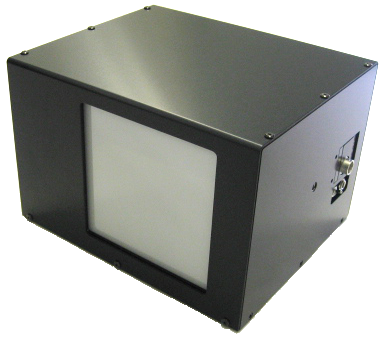

LaseView-LHB

LaseView-LHBの外観図(受光部及び端子部)

LaseView-LHB external view
(Light receiving part and terminal part)

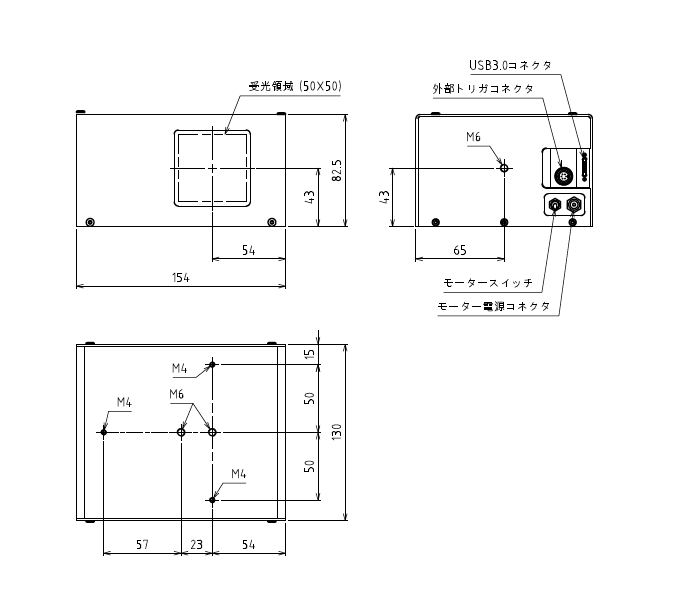

LaseView-LHB外観図
LaseView-LHB external view

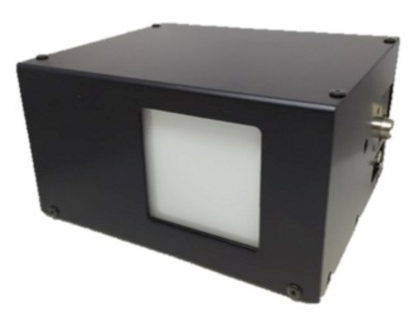

LaseView-LHB-100

LaseView-LHB-100の外観図(受光部及び端子部)

LaseView-LHB-100 external view
(Light receiving part and terminal part)

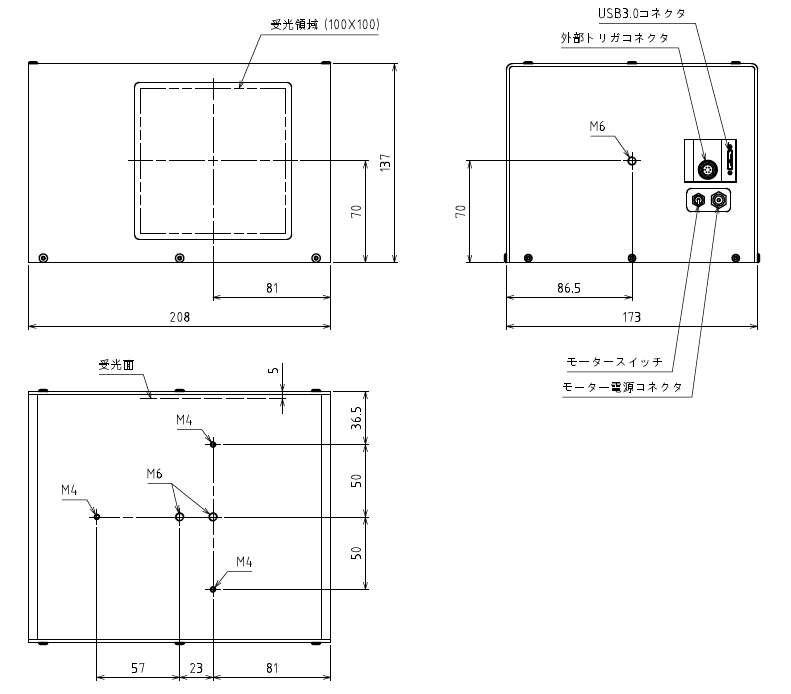

LaseView-LHB-100外観図
LaseView-LHB-100 external view

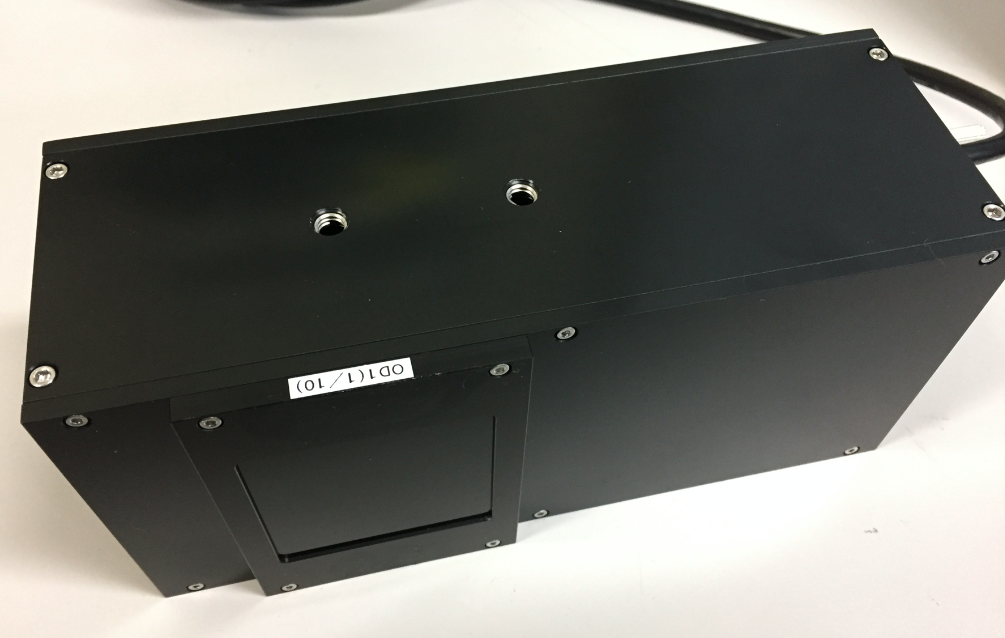

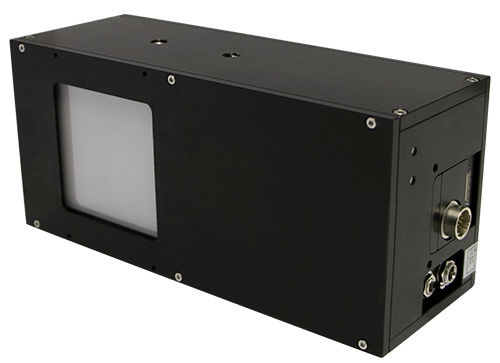

LaseView-LHB-mini

LaseView-LHB-miniの外観図(NDフィルターを付けた状態)

LaseView-LHB-mini external view
(With ND filter attached)

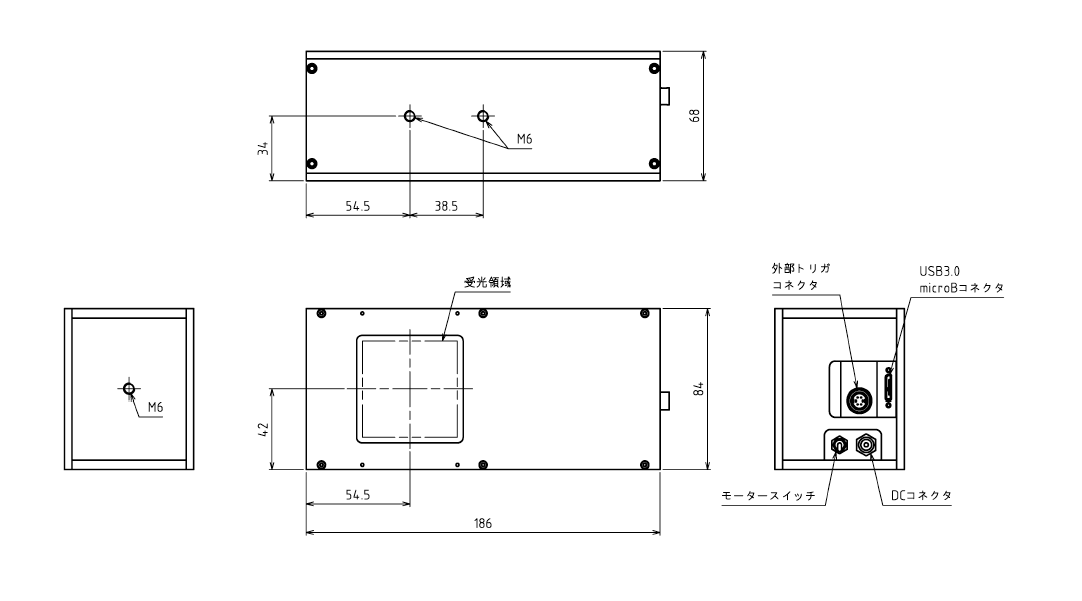

LaseView-LHB-mini外観図
LaseView-LHB-mini external view

LaseView-LHB-100-NIR

LaseView-LHB-100-NIRの外観図

LaseView-LHB-100-NIR external view

LaseView-LHB-NIR

LaseView-LHB-NIRの外観図

LaseView-LHB-NIR external view

LaseView-LHB-GigE

LaseView-LHB-GigE外観図
LaseView-LHB-GigE external view

*USB 3.0 connector is used when connecting to a PC.
*The external trigger connector is used when taking an external trigger.
*The motor power connector and motor switch are used when using the speckle reduction function.

Application

  • Beam profile measurement for large diameter
  • Beam profile measurement for high power laser
  • Measurement for Laser far field pattern (FFP)
  • Measurement for Laser near field pattern (NFP)
  • Beam profile measurement for laser processing
  • Beam profile measurement for surgical laser
  • Measurement and evaluation of CW (continuous wavelength) and pulse LED emission
  • Measurement and evaluation of beam of semiconductor laser emission
  • Measurement and evaluation of beam of optical pick-up sources
  • Measurement and evaluation of NA of optical fiber
  • Measurement of propagation loss, beam profile or divergence angle for artificial star and distance measurement laser devices of astronomical telescopes
  • Lensometer
  • Beam monitoring system of long-distance propagating laser
  • Beam profile measurement of laser scanning unit
  • Scan laser position measurement
  • For confirmation of Lidar laser
  • Lidar rating
  • RGB laser source position and beam profile measurement
  • For confirmation of laser projector

Price and lead time

Product Model number Catalog User guide Price Lead time
Beam profiler for large diameter and high power laser
(50 mm × 50 mm)
LaseView-LHB pdf pdf US$ 14,800
(Ex-works Japan)
(without Tax)
Around 1-1.5 month
Beam profiler for large diameter and high power laser
(100 mm × 100 mm)
LaseView-LHB-100 US$ 19,800
(Ex-works Japan)
(without Tax)
Beam profiler for large diameter and high power laser in Infrared area
(50mm×50mm)
LaseView-LHB-NIR USD 30,000
(Ex-works Japan)
(without Tax)
Beam profiler for large diameter and high power laser in Infrared area
(100 mm × 100 mm)
LaseView- LHB-100-NIR USD 35,000 (Ex-works Japan)
(without Tax)
Beam profiler for large diameter and high power laser
(50 mm × 50 mm)
LaseView-LHB-mini USD 14,300(Ex-works Japan)
(without Tax)
* This product (Beam Profiler with M2 Platform Software LaseView) is 1 license per machine.

Video (example)


  • Typical use cases for LHB

  • Examples of laser projector use

  • Example of LED light use

  • Real-time peak tracking function

  • Example of laser pointers use

  • Example of LED array (multi-stage LED) use

  • LaseView-LHB-100: Exhibition / Demo

Sales results

  • Tokyo Institute of Technology
  • Japan Coast Guard(JCG)
  • Japan Aerospace Exploration Agency(JAXA)
  • National Institutes for Quantum and Radiological Science and Technology(QST)
  • Japan Atomic Energy Agency(JAEA)
  • More than 10 domestic private companies
  • More than 2 overseas private companies
