What is a LaseView camera set?

LaseView is a beam profiler with M2 platform software, which is an inexpensive beam profiler software that can be used intuitively.
The LaseView camera set series includes a set of optimal cameras for various conditions such as laser wavelength band, diameter, and pulse / CW.
Easily build a beam profile observation system according to the usage environment.

* This product (Beam Profiler with M2 Platform Software LaseView) has 1 license per machine.

Constitution

This camera set includes the following contents.

  • LaseView software (US $ 3000 tax excluded)
  • CCD camera

If you need various options, don’t need a camera, or want a camera other than those included in the set, see the following page.
Beam Profiler with M2 Platform Software LaseView

Beam profiler for 600W fiber laser

How to choose the best camera set

Simply choose the one that matches your laser from the table below to find the best camera set.

wavelength
190 – 400 nm 400 – 1100 nm 900 – 1700 nm (NIR) 2 -16 μm
Beam diameter / beam type 2 μm ~ 100 μm
5 μm ~ 100 μm (NIR)
Micro beam diameter measurement optical system set + camera set
LaseView-CA-DUV-BE
Micro beam diameter measurement optical system set + camera set
LaseView-CA50-NCG-BE
LaseView-CA-SWIR-BE
30 μm ~ 5 mm
200 μm ~ 5 mm (NIR)
Femtosecond pulse or condensed light camera set
LaseView-CA50-NCG
camera set
LaseView-CA50-NCG
camera set
LaseView-CA-SWIR
Custom correspondence
Parallel light Custom correspondence
* Please contact us for beam profiler for kW fiber laser.
* If the image is not displayed even when the start button is pressed, set it in [Pixel Format] in [Camera Settings] on the [Camera] tab.

Difference between “femtosecond pulse or condensed light” and “parallel light”

infuluence_of_coverglass_s
Fig: Beam profile collapses with or without cover glass
The problem is the likelihood of interference.
A protective cover glass is usually attached on top of the CCD sensor.
Interference may occur between the cover glass and the surface of the CCD sensor.
In the case of “femtosecond pulse or condensed light”, interference is unlikely to occur, but in the case of “parallel light”, interference is likely to occur and it is necessary to use a CCD without a cover glass.
* NCG (Non Cover Glass) is attached to the model number of the camera set without cover glass.

wavelength: 190 – 400 nm

Beam diameter: 2 μm ~ 100 μm

LaseView-CA-DUV-BE(Beam profiler)

External view of LaseView-CA-DUV-BE
Fig: External view of LaseView-CA-DUV-BE
Price: US $ 9910 (excluding tax)
(* If you already have LaseView software, please subtract US $ 3000)
(Trigger option: + US $ 120 (excluding tax))
Lead time: Around 4 weeks

Constitution Specifications (can be customized)
LaseView software
(US $ 3000 (excluding tax))
CCD Camera Pixel resolution 1360 x 1024
CCD size 1/2 type
Pixel size 4.65μm x 4.65μm
interface USB 2.0
Micro beam diameter measurement optical system magnification About 30 times
NA 0.5
Working wavelength range 240 – 360 nm
Optical resolution < 1 μm
Working distance About 1 mm
length 194 mm

Beam diameter: 30 μm ~ 5 mm

LaseView-CA50-NCG(Beam profiler)

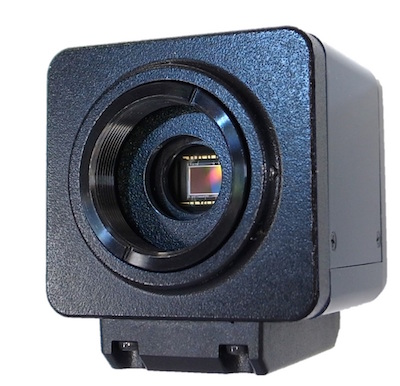

External view of LaseView-CA50-NCG
Fig: External view of LaseView-CA50-NCG
Price: US $ 4310 (excluding tax)
(* If you already have LaseView software, please subtract US $ 3000)
(Trigger option: + US $ 120 (excluding tax))
Lead time: Around 4 – 6 weeks

Constitution specification
LaseView software
  (US $ 3000 (excluding tax))
CCD Camera Pixel resolution 1360 x 1024
CCD size 1/2 type
Pixel size 4.65μm x 4.65μm
interface USB 2.0

laseview_button  paypal accepted here

wavelength: 400 – 1100 nm

Beam diameter: 2 μm ~ 100 μm

LaseView-CA50-NCG-BE(Beam profiler)

External view of LaseView-CA-DUV-BE

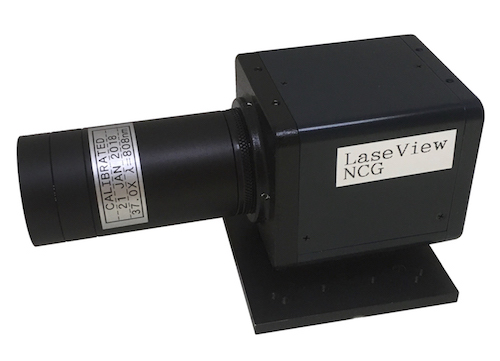

Fig: External view of LaseView-CA-NCG-BE
Price: US $ 5120 (excluding tax)
(* If you already have LaseView software, please subtract US $ 3000)
(Trigger option: + US $ 120 (excluding tax))
Lead time: Around 4 weeks

Constitution Specifications (can be customized)
LaseView software
  (US $ 3000 (excluding tax))
CCD Camera Pixel resolution 1360 x 1024
CCD size 1/2 Type
Pixel size 4.65μm x 4.65μm
interface USB 2.0
Micro beam diameter measurement optical system magnification Typical value 37.0 times @ 808nm
NA 0.4
Optical resolution < 2 μm
Working distance About 1.5 mm
length 121 mm
Working wavelength range 400 – 1100 nm (600 – 1100 nm recommended)

Reference video

Beam diameter: 30 μm ~ 5 mm

LaseView-CA50-NCG(Beam profiler)

External view of LaseView-CA50-NCG
Fig: External view of LaseView-CA50-NCG
Price: US $ 4310 (excluding tax)
(* If you already have LaseView software, please subtract US $ 3000)
(Trigger option: + US $ 120 (excluding tax))
Lead time: about 4 – 6 weeks

Constitution specification
LaseView software
  (US $ 3000 (excluding tax))
CCD Camera Pixel resolution 1360 x 1024
CCD size 1/2 type
Pixel size 4.65μm x 4.65μm
interface USB 2.0

laseview_button  paypal accepted here

wavelength: 900 – 1700 nm

Beam diameter: 4 μm ~ 150 μm

LaseView-CA-SWIR-BE(Beam profiler)

External view of optical system for measuring small beam diameter
Fig: External view of optical system for measuring small beam diameter
Price: US $ 20810 (excluding tax)
(* If you already have LaseView software, please subtract US $ 3000)
Lead time: about 4 – 6 weeks

Constitution Specifications (can be customized)
LaseView software
  (US $ 3000 (excluding tax))
InGaAs Camera Pixel resolution 320 x 256
Sensor size 6.4 x 5.12 mm
Pixel size 20 μm x 20 μm
interface GigE(1000Base/1000BaseTnetwork)
Micro beam diameter measurement optical system magnification About 30 times
NA 0.4
Optical resolution 4 μm or less
Working distance About 1.7 mm
length 176 mm

Beam diameter: 120 μm ~ 5 mm

LaseView-CA-SWIR(Beam profiler)

External view of LaseView-CA-SWIR
Fig: External view of LaseView-CA-SWIR
Price: US $ 20000 (excluding tax)
(* If you already have LaseView software, please subtract US $ 3000)
Lead time: about 4 – 6 weeks

  • Comes with a 100V AC adapter and power cable for the camera.
  • Tripod base bracket is optional. US $ 40 (excluding tax) will be added when purchasing together.
  • LAN cable is an option. When preparing your own, select a cat 6 or higher cable.
  • You can connect directly to a PC with a 1000Base or higher LAN port. In this case, set the PC LAN to DHCP.
  • If the wired LAN port cannot be used, adapters with the following operation results can be used.

USB3.0 LAN adapter (Gigabit compatible)
LAN-ADUSBRJ45G
Standard price: US $ 49.8 (excluding tax)

Constitution Specifications
LaseView software
  (US $ 3000 (excluding tax))
Pixel resolution 320 x 256
Sensor size 6.4 x 5.12 mm
Pixel size 20 μm x 20 μm
interface GigE(1000Base/1000BaseTnetwork)

LaseView Purchasers

  • The University of Tokyo
  • Osaka University
  • National Institute for Fusion Science
  • Kyoto University
  • The University of Electro-Communications
  • Tokyo Institute of Technology
  • Japan Atomic Energy Agency
  • Optoelectronics and Industrial Science Graduate University
  • Hiroshima University
  • Fukui University
  • Kyushu University
  • RIKEN
  • Laser Technology Research Institute
  • National Observatory (NAOJ)
  • Helmholtz-Zentrum Dresden-Rossendorf (HZDR, Germany)
  • Institute of Physics AS CR, v.v.i. (Czech Republic)
  • Jet Propulsion Laboratory, NASA
  • (Other domestic and foreign private companies)

Users feedback

  • “As cameras are cheap, we are not worrying breaking them”
  • “We can use cameras as expandable goods”
  • “Easy to prepare”
  • “The Software is easy to use and intuitive”
  • “Low-cost !”
  • “It is great to have M2 beam quality measurement function already included”

price list

Model number LaseView and camera set Camera set only
LaseView-CA-DUV-BE US$9910 US$6910
LaseView-CA50-NCG US$4310 US$1310
LaseView-CA50-NCG-BE US$5120 US$2120
LaseView-CA-SWIR-BE US$20810 US$17810
LaseView-CA-SWIR US$20000 US$17000

* All prices exclude tax.

laseview_button  paypal accepted here
